Wenesco High Uniformity Hot Plates

Wenesco high uniformity hot plates feature remote digital thermostats to control the plate temperature.

Current  temperature and set point are digitally displayed. Low watt density heater elements distribute heat evenly across the plate.

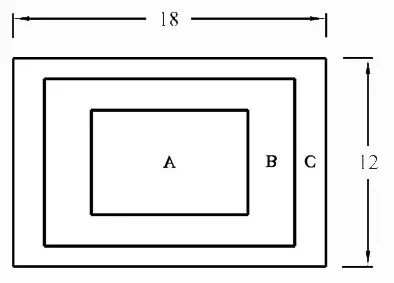

Typical temperature  uniformity is 1-2% of set point, See example uniformity grids below.



All uniform hot plate surfaces feature less than .005 in. surface deviation.  This can be improved to .001 in. on special order.



High uniformity is available in most standard hot plates listed on Page 1.  We also custom build special uniform hot plates.

(Above) Model HP1212U shown with (RS) ramp-soak digital  thermostat

(Above) Model HP1212U shown with (RS) ramp-soak
digital  thermostat



Wenesco High Uniformity Hot Plate
Wenesco High Uniformity Hot Plate
Wenesco High Uniformity Hot Plate
Wenesco High Uniformity Hot Plate
Wenesco High Uniformity Hot Plate
Wenesco High Uniformity Hot Plate

Hot plate HP1818U

Set point: 400 Centigrade

X1 = 402C      X6 = 400C

X2 = 399C      X7 = 391C
X3 = 393C      X8 = 391C
X4 = 392C      X9 = 390C

X5 = 401C



Thermostat Controls for Uniform Hot Plates

Wenesco High Uniformity Hot Plate
Uniform hot plate, with 72 X 24 in. heated surface

(Above) Uniform hot plate, with 72 X 24 in. heated surface

(Right) Uniform Bonding Table, 36 x 144 inches, controlled in 4 zones with digital thermostats.  The 2 % uniformity area measure 24 x 120 inches.

Uniform Bonding Table, 36 x 144 inches, controlled in 4 zones with digital thermostats.  The 2 % uniformity area measure 24 x 120 inches.

NOTE: High Uniformity is available in most models. Please consult factory for details
