Wenesco Round Hot Plates / Chromalox - Style
All models include a steel heated plate except Models HP932A and HP932B, which are cast iron. Housings are made from stainless steel.
Thermostats can be mounted or remote. Digital thermostats are optional at extra cost.
Models HP932A, HP932B are rated for long life at elevated temperatures. The heated plate is made of cast iron, and the housing of stainless steel.
Temperature is regulated with an infinite power control set on a numbered dial.
Other features include an on-off switch, and a 5-foot cord with plug. Overall size: 10-in diameter x 9-in high.

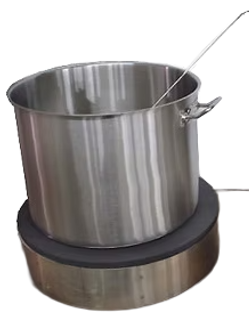

Model HP18S16 Hot Plate shown with a 5-gallon. stock pot. Note that the optional external thermocouple from the remote digital thermostat is immersed in the pot so that the hot plate is controlled using the temperature of the fluid rather than the plate surface.
Model HP22S36 is a 22-inch diameter hot plate with extra power for warming a full 55-gallon drum. Temperature is controlled with a remote Digital Fotek Thermostat
-
Model HP18S16 will heat 20 gallons of water in a covered stock pot from 70F to 210F in 2 hours
-
Model HP22S42 will heat 20 gallons from 70F to 210F in 55 minutes.
-
Due to lower specific heat values, most liquids and blends will heat faster than water
