Wenesco Static Solder Pots

An alternate method for soldering circuit boards.

ALL WENESCO SOLDER POTS ARE CERAMIC COATED FOR OPERATION WITH STANDARD OR LEAD-FREE ALLOYS.

Soldering circuit boards in a shallow pot dates back to the 1950's and is still a reliable method of low volume soldering of PCB's.

First spray or brush soldering flux on the bottom of the board. Next skim the surface of the pot to clear surface dross (oxidation).
Finally, using a "board gripper," dip the board flat into the molten solder.
The board will solder in less than 5 seconds.

Our standard models are thermostat controlled up to 575F.

All models are thermostat controlled. The dial is numbered 1-10.
Temperature range is 450F-950F (DEPENDING ON MODEL AND THERMOSTAT)/ Accuracy approximately +/- 25F .
Power controls are available to reduce temperature range to 0-575F.
Digital thermostats are available for close temperature control, temperature display, and expanded range ( 0-950F).

(Above) Model MPM 59H

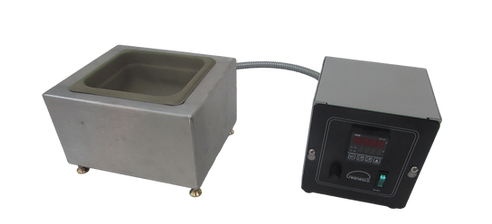

(Below) Model MPM 225 with remote digital thermostat

(Above) Model MPM16 shown with Optional Digital Controller

(Below) MPM 32 (W/Lid) (Shown with Optional Digital Thermostat)

Wenesco Pots For Roofing Applications

Please send us an email for a quote on either of the two models referenced below

(Below - Top Picture) MPM1700D shown for reference only*

(Below) MPM1325D shown for reference only*

WENESCO MPM1700D STATIC SOLDER POT FOR ROOFING

MPM1325 WENESCO STATIC SOLDER POT FOR ROOFING

Wenesco Welcomes Your Inquiry For Custom Industrial Solder Pots.

Click Here

to head over to our customization request page and fill out the questionnaire to receive more information and a quote. Please include as much information as you can. We will respond to your inquiry ASAP.

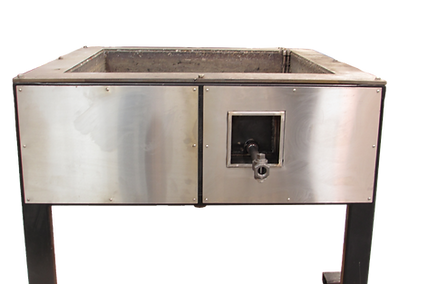

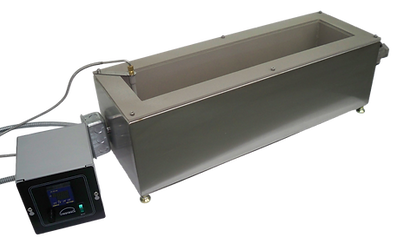

(Above/Below) CUSTOM Static Solder Pots built to customer specifications

(Below) Model MPM700 Custom Pot built to customers specifications
